螺牙规格: 公制牙(Metric)、PG牙、G牙、NPT牙

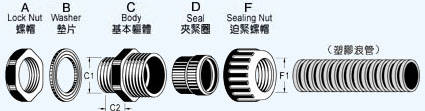

产品材质: A.C.F部分采用UL认可之无卤素（Halogen-Free）尼龙PA66(防火等级UL94V-2)制成;(可定制UL认可的V-0防火等级尼龙原料);
B.D部分采用三元乙丙(EPDM)耐候橡胶制成。(可定制耐寒、耐高温橡胶;耐高酸碱、耐化学与抗腐蚀橡胶)。
保护等级: IP68
工作温度: 静态-40℃至100℃,或瞬间可耐热至120℃;动态-20℃至80℃，或瞬间可耐热至100℃.
产品特性: 本款高性能防水尼龙浪管盒接头能完美地抗水压，是一款即使拉扯波纹管也能完全保持气密的产品。产品广泛地应用于移动式的自动化设备之防水、防油与气密的场合。
| 规格型号 |
适配软管 |
螺牙规格 |
螺纹外径 |
螺纹长度 |
幅体最小通径 |
包装 |
| Item.No. |
Accommodated Pipes |
Thread |
AG Outer diameter(mm) |
Thread Length |
Body Min. |
Std.Pkg |
| |
|
|
|
GL(mm) |
L.D. |
(pcs) |
| |
|
|
|
|
(mm) |
|
| FST-M12-10.0 |
AD10.0 |
M12 x 1.5 |
12 |
8.5 |
8 |
50 |
| FST-M16-10.0-ST |
M16 x 1.5 |
16 |
10 |
8 |
50 |
| FST-M16-13.0-ST |
AD13.0 |
M16 x 1.5 |
16 |
10 |
10.7 |
50 |
| FST-M16-13.0 |
M16 x 1.5 |
16 |
15 |
11.1 |
50 |
| FST-M18-13.0-ST |
M18 x 1.5 |
18 |
10 |
10.7 |
50 |
| FST-M20-13.0-ST |
M20 x 1.5 |
20 |
10 |
10.4 |
50 |
| FST-M16-15.8-ST |
AD15.8 |
M16 x 1.5 |
16 |
10 |
11.1 |
50 |
| FST-M16-15.8 |
M16 x 1.5 |
16 |
15 |
11 |
50 |
| FST-M18-15.8-ST |
M18 x 1.5 |
18 |
10 |
11 |
50 |
| FST-M18-15.8 |
M18 x 1.5 |
18 |
15 |
11 |
50 |
| FST-M20-15.8-ST |
M20 x 1.5 |
20 |
10 |
14.5 |
50 |
| FST-M20-15.8 |
M20 x 1.5 |
20 |
15 |
14.5 |
50 |
| FST-M25-15.8-ST |
M25 x 1.5 |
25 |
12 |
14.6 |
50 |
| FST-M16-18.5-ST |
AD18.5 |
M16 x 1.5 |
16 |
10 |
11.1 |
50 |
| FST-M16-18.5 |
M16 x 1.5 |
16 |
15 |
11 |
50 |
| FST-M20-18.5-ST |
M20 x 1.5 |
20 |
10 |
14.5 |
50 |
| FST-M20-18.5 |
M20 x 1.5 |
20 |
15 |
14.5 |
50 |
| FST-M25-18.5-ST |
M25 x 1.5 |
25 |
12 |
14.6 |
50 |
| FST-M20-21.2-ST |
AD21.2 |
M20 x 1.5 |
20 |
10 |
14.6 |
50 |
| FST-M20-21.2 |
M20 x 1.5 |
20 |
15 |
14.5 |
50 |
| FST-M25-21.2-ST |
M25 x 1.5 |
25 |
10 |
19.1 |
50 |
| FST-M25-21.2 |
M25 x 1.5 |
25 |
15 |
19 |
50 |
| FST-M32-21.2-ST |
M32 x 1.5 |
32 |
12 |
19.1 |
50 |
| FST-M25-25.0-ST |
AD25.0 |
M25 x 1.5 |
25 |
10 |
19.2 |
50 |
| FST-M25-25.0 |
M25 x 1.5 |
25 |
15 |
19.2 |
50 |
| FST-M25-28.5-ST |
AD28.5 |
M25 x 1.5 |
25 |
10 |
19.2 |
50 |
| FST-M25-28.5 |
M25 x 1.5 |
25 |
15 |
19.2 |
50 |
| FST-M32-34.5-ST |
AD34.5 |
M32 x 1.5 |
32 |
10 |
26.3 |
20 |
| FST-M32-34.5 |
M32 x 1.5 |
32 |
15 |
26.3 |
20 |
| FST-M40-42.5 |
AD42.5 |
M40 x 1.5 |
40 |
15 |
34.1 |
10 |
| FST-M50-54.5-ST |
AD54.5 |
M50 x 1.5 |
50 |
15 |
41.4 |
10 |
| FST-M50-54.5 |
M50 x 1.5 |
50 |
22 |
41.4 |
10 |
| FST-M63-54.5 |
M63 x 1.5 |
63 |
25 |
53.6 |
10 |
| FST-PG7-10.0 |
AD10.0 |
PG7 |
12.5 |
8.5 |
8.5 |
50 |
| FST-PG9-10.0 |
PG9 |
15.2 |
9 |
8.3 |
50 |
| FST-PG9-13.0 |
AD13.0 |
PG9 |
15.2 |
10 |
10.4 |
50 |
| FST-PG11-13.0 |
PG11 |
18.6 |
10 |
11.2 |
50 |
| FST-PG11-15.8 |
AD15.8 |
PG11 |
18.6 |
10 |
13.7 |
50 |
| FST-PG13.5-15.8 |
PG13.5 |
20.4 |
10 |
15.1 |
50 |
| FST-PG16-15.8 |
PG16 |
22.5 |
10.8 |
14.6 |
50 |
| FST-PG11-18.5 |
AD18.5 |
PG11 |
18.6 |
10 |
13.7 |
50 |
| FST-PG13.5-18.5 |
PG13.5 |
20.4 |
10 |
15.1 |
50 |
| FST-PG16-18.5 |
PG16 |
22.5 |
10.8 |
14.6 |
50 |
| FST-PG16-21.2 |
AD21.2 |
PG16 |
22.5 |
10 |
16.1 |
50 |
| FST-PG21-21.2 |
PG21 |
28.3 |
12.5 |
18.7 |
50 |
| FST-PG21-28.5 |
AD28.5 |
PG21 |
28.3 |
12 |
23.2 |
50 |
| FST-PG29-34.5 |
AD34.5 |
PG29 |
37 |
12 |
28.1 |
20 |
| FST-PG36-42.5 |
AD42.5 |
PG36 |
47 |
13 |
37.3 |
10 |
| FST-PG48-54.5 |
AD54.5 |
PG48 |
59.3 |
16 |
51.8 |
10 |
|
